Gpu post nr 4: height lock

Raw height data, nudged out of place, then snapped back into line.

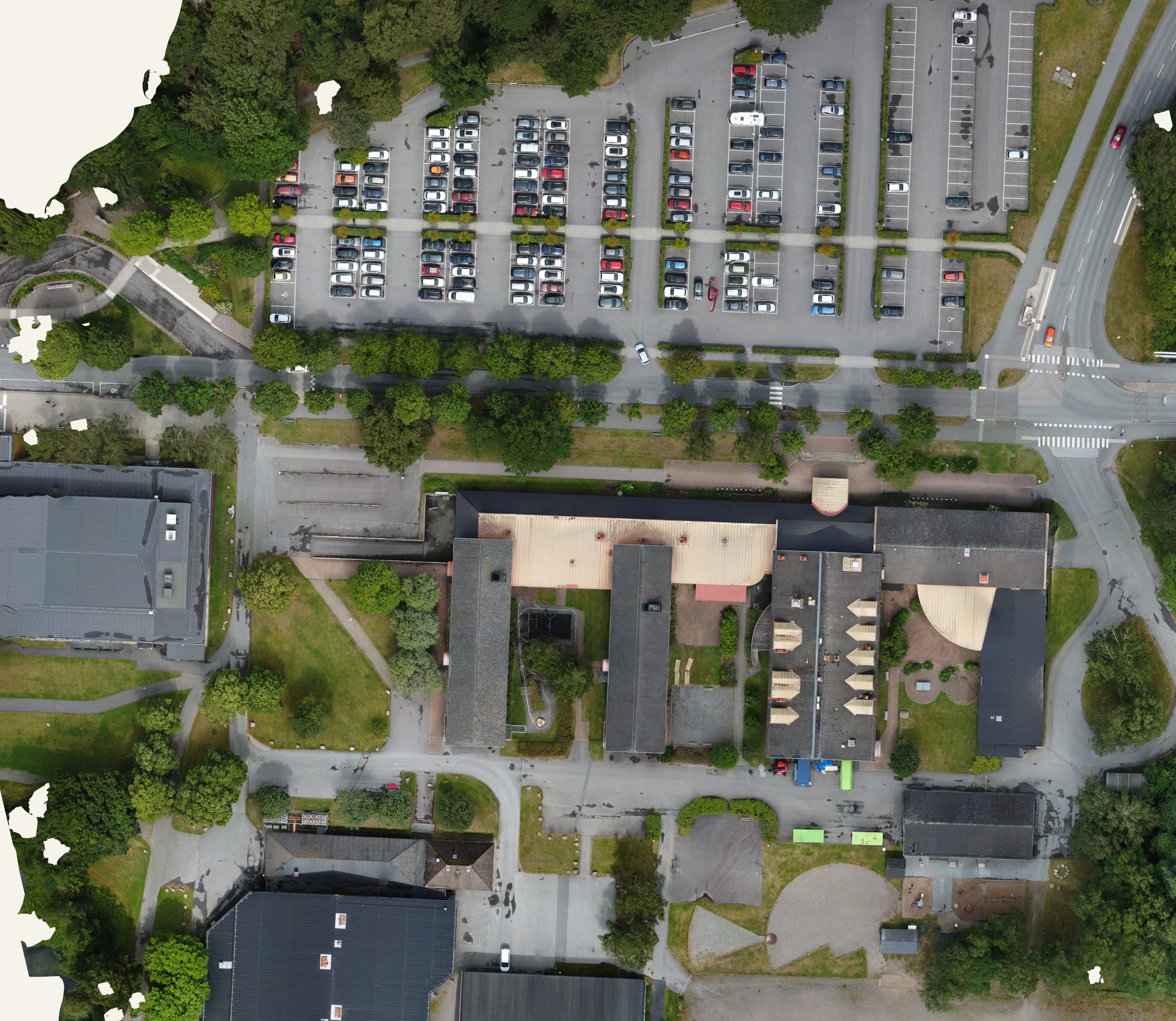

Nolhagaskolan.

Raw height data, deliberately nudged out of place, then pulled back into line.

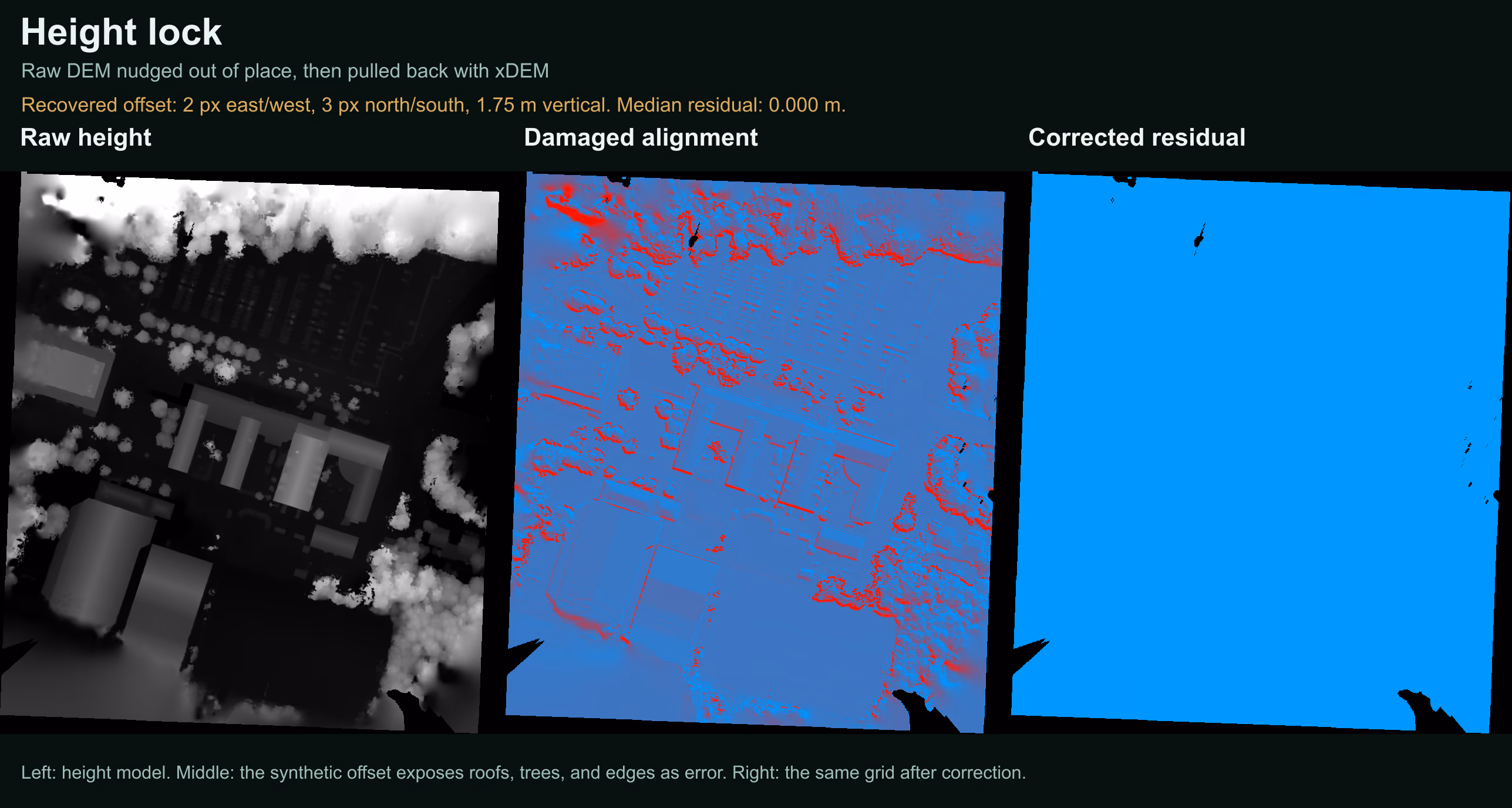

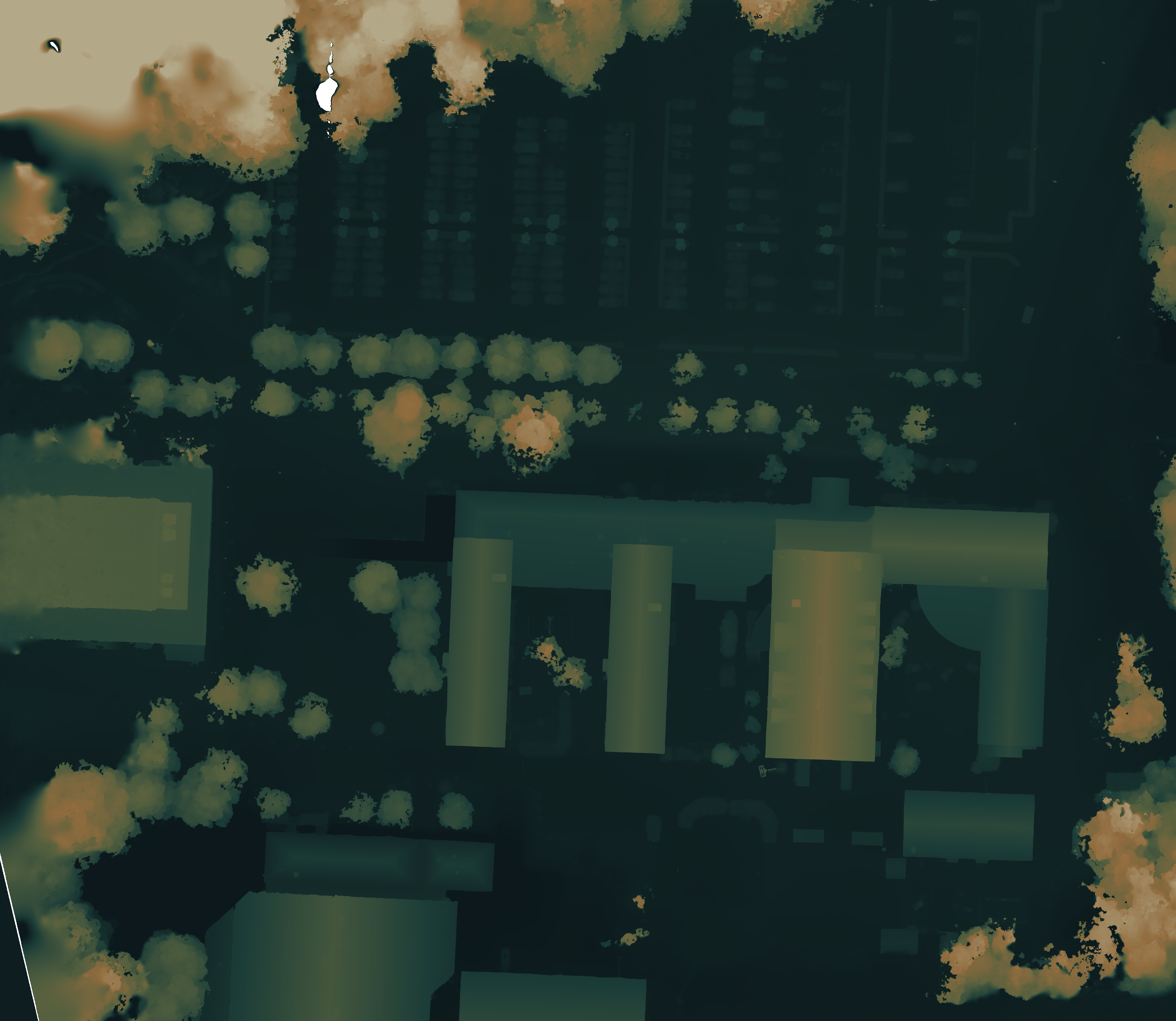

Left is the height model. Middle is the error after I damaged it. Right is xDEM finding the offset and killing the residual.

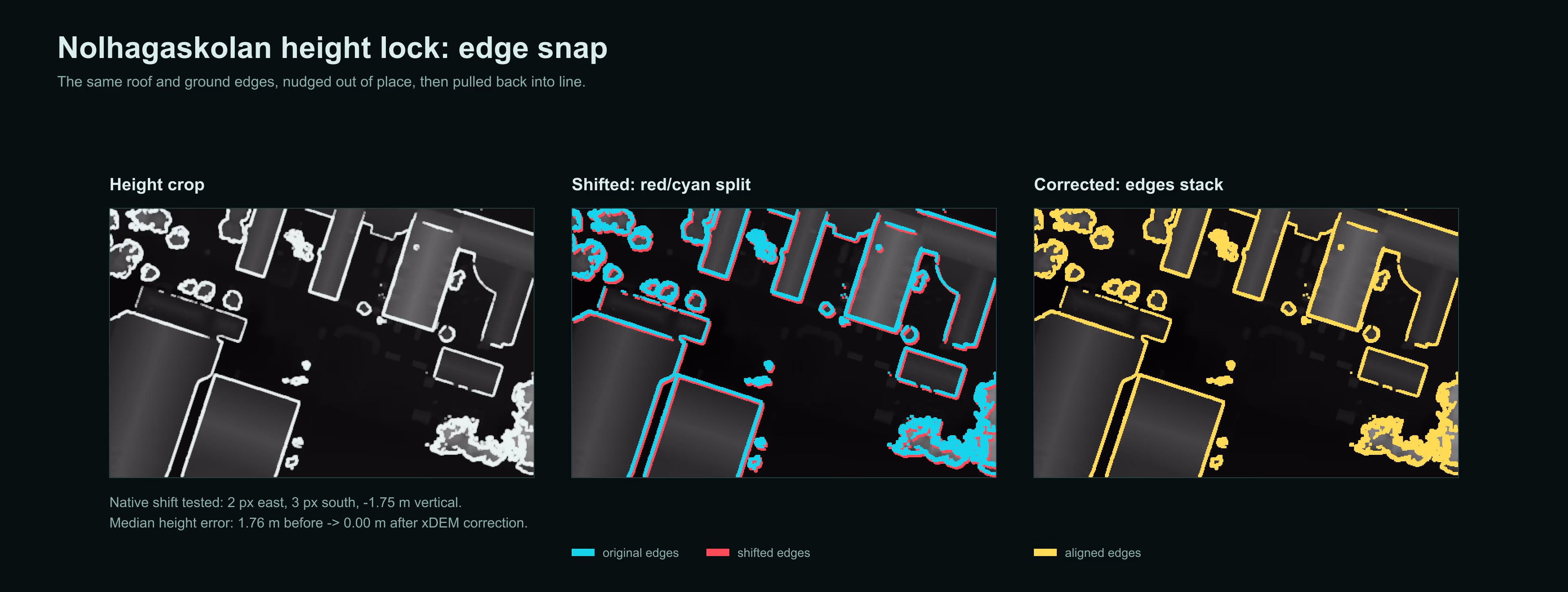

The close-up is the same mistake with sharper teeth: red and cyan split, yellow stacks.

Two pixels, three pixels, 1.75 meters.

Tiny numbers. Visibly not tiny.
